Tunnel Ventilation vs Cross Ventilation for Poultry Houses

Choosing between tunnel ventilation and cross ventilation systems significantly impacts your poultry operation's efficiency, bird health, and profitability. Tunnel ventilation creates directed, high-velocity airflow through the entire house length, ideal for heat stress management in large-scale broiler and layer operations. Cross ventilation introduces fresh air through sidewall inlets, offering gentler air exchange suitable for moderate climates and smaller facilities. The strategic integration of a Chicken House Ventilation Guide Vane in either system dramatically improves airflow distribution, eliminating cold spots and reducing energy waste. Understanding which system aligns with your farm's geographic location, bird density, and climate challenges determines your long-term operational success.

Understanding Poultry House Ventilation Systems

To keep group performance at its best, modern chicken production requires careful environmental control. Ventilation systems are very important because they remove heat, add oxygen, and keep moisture levels in check. If you don't control airflow properly, ammonia levels rise, respiratory diseases spread, and feed conversion rates get worse.

How Tunnel Ventilation Operates

By putting big exhaust fans at one end of the chicken coop and fresh air in through openings at the other end, tunnel ventilation creates a one-way flow of air. During the height of summer, this configuration makes winds that range from 400 to 600 feet per minute across the bird zone. High-speed air causes a wind-chill effect that helps birds lose body heat even when the temperature outside is too high for them.

This system works especially well in chicken houses that are longer than 400 feet, where other methods have trouble keeping the air moving at the same speed. The controlled airflow pattern stops dead zones, which are places where air doesn't move and dangerous gases build up. When the temperature outside goes above 75°F, tunnel ventilation usually starts. It changes from minimum ventilation settings as the risk of heat stress rises.

How Cross Ventilation Functions

Cross ventilation brings in fresh air through sidewall openings on both sides of the chicken coop, and exit fans on one or both sidewalls. Air comes into the building, moves across the bird zone horizontally, and leaves through ridge vents or mechanical fans. This method allows for great air flow without causing the high-speed situations that are common in tunnel systems.

Cross ventilation works well in chicken coops in mild areas where high heat doesn't happen often. During cooler months, when birds need fresh air but gain from slower air speeds, the method works better. Many modern farms use both systems together, switching between cross and tunnel modes depending on the time of year and the age of the birds.

The Role of Airflow Direction Components

No matter which main method you choose, making sure that incoming air goes in the right direction keeps cold air from hitting birds directly in the winter. The shape of the intake and extra parts that guide airflow make sure that cool air from the roof mixes with fresh air before it gets to the flock level. This mixing process makes sure that the temperature inside the building stays the same.

Installing precision-engineered airflow direction parts at the entry points directs cold air toward the roof, where it can warm up before going down. This modification, which seems pretty easy, stops chilling stress, lowers heating costs, and gets rid of problems with wet litter near sidewalls. Because these parts are aerodynamically designed, they have low resistance, which means ventilation fans work well without too much static pressure.

Tunnel Ventilation vs Cross Ventilation: Performance and Benefits

To choose the right airflow strategy, you need to know how each system affects bird health, energy use, and the difficulty of running the system. Depending on the features of your building and the weather trends in your area, each method has its own benefits.

Airflow Efficiency and Temperature Control

When it's very hot outside, tunnel ventilation works best because it speeds up the air moving across the birds. This wind-chill effect can make it seem cooler by 10 to 15°F, which helps groups eat normally and grow at normal rates during the summer. The method keeps the airflow steady no matter what the wind is doing outside, so the environment can be controlled reliably.

When the air outside stays below 80°F, cross ventilation works best. The system moves air more gently, which is better for young birds that are easily stressed by drafts. Cross ventilation keeps the air quality high in the spring and autumn while using less energy than tunnel systems that are only partially full. Temperature naturally separates the horizontal flow of air, with cooler air settling near the birds and warmer air rising toward the ceiling.

Impact on Bird Health and Productivity

study from some of the world's best chicken study institutions shows that good ventilation is directly linked to lower death rates and better feed conversion. Tunnel ventilation keeps temperatures bearable even when outside temperatures reach over 95°F, which lowers the number of deaths caused by heat in the summer. Chicken House Ventilation Guide Vane plays a critical role in this system: the constant flow of air, properly directed by these vanes, keeps the quantity of ammonia below 25 parts per million (ppm) throughout the building.

When set up correctly with high-quality air intake parts, cross ventilation systems distribute air better when it's cooler. Birds use less energy because the air is moving more slowly, which means that more nutrients can be used for growth instead of keeping the body temperature stable. Respiratory diseases are less likely to happen when the air quality stays the same and doesn't make it drafty, which stresses out immune systems.

Economic Considerations and Operational Costs

For tunnel ventilation, you need to buy a lot of high-capacity exhaust fans at first. These fans usually cost between $800 and $1,500 each for units that move 36,000 to 50,000 CFM. A 500-foot grill house might need 8–12 of these fans, which is a big investment. But the fact that the system can keep making things into the hot summer months, when prices are usually highest on the market, makes this investment worthwhile for many businesses.

Installing cross ventilation costs less at first because smaller fans are placed along the walls. Less energy is used when it's not too hot or cold because fewer fans are running at lower speeds. Maintenance costs stay stable because different fan sizes make them easy to handle and replace. Cross ventilation is a great way for farms in moderate areas where high heat doesn't happen very often to get great results without having to pay for a tunnel system.

By making the best use of static pressure, strategically placing airflow guide systems makes both ventilation ways more cost-effective. Fans use 15 to 20 percent less electricity to move the same amount of air when the air coming in is directed correctly and doesn't create turbulence. This increase in efficiency adds up over the life of a building, lowering utility costs by a large amount.

Designing and Installing Ventilation Vanes for Poultry Houses

Choosing the right airflow guide components and installing them correctly will decide whether your ventilation investment works as promised. Long-term dependability and efficiency are affected by the quality of the materials, the exact measurements, and the mounting methods used.

Material Selection for Durability

High humidity, corrosive ammonia gases, and harsh cleaning chemicals are just some of the harsh conditions that equipment has to deal with in industrial poultry environments. Ventilation parts must be able to handle these problems without breaking down. Some of the best materials are fresh ABS plastic that has been mixed with UV stabilisers, hard PVC that is more resistant to impact, and frames made of aluminium alloy or stainless steel for structural parts.

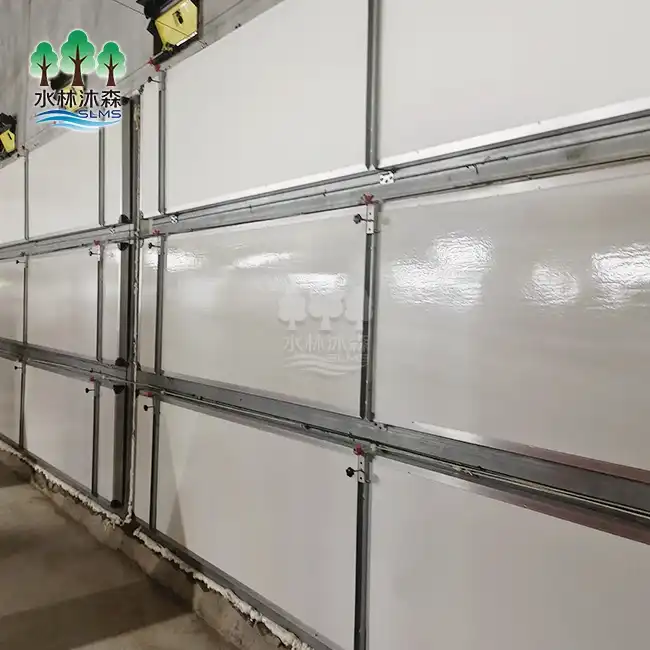

Weifang Shuilin Musen Aquaculture Equipment Co., Ltd. makes air guide systems that are 5 cm thick and have frames made of aluminium alloy or stainless steel, depending on what the customer wants. This strong design doesn't bend even when it's being used continuously at steady forces of up to 50 Pascal. Extremely resistant to ageing, the materials keep their structural integrity and aerodynamic performance over a long period of time.

The lightweight design of high-quality parts makes installation and regular adjustments easier. Technicians don't need special lifting gear to quickly change the angles of the vanes to adapt to changes in the seasons. This makes servicing easier, which cuts down on downtime and labour costs while keeping the machine running at its best all year.

Installation Best Practices

Putting airflow direction components in the right place is very important for how well they work. To move incoming air toward the roof, parts should be mounted right inside the openings for air intake, at an angle of 30 to 45 degrees from horizontal. The exact angle relies on the height of the inlet, the distance to the ceiling, and the design of air throw that you want.

Before installing, make sure that the outlet holes are the exact same size as the parts to keep air from leaking around the edges. Any holes let cold air fall directly on birds, which defeats the purpose of the components. Sealing strips around the edges of the parts keep air out when they are closed during very cold weather.

We offer full technical support, which includes installation videos that show the right way to mount and adjust things. Our on-site installation service is still available for customers who need help setting up the system the first time. Chicken House Ventilation Guide Vane is a key component addressed in our support materials, and following our advice on its proper positioning will make sure that your system works as efficiently as it was meant to from the start, protecting both your investment in the air equipment and the performance of the birds.

Maintenance Requirements

When made from the right materials, quality airflow guide components don't need much upkeep. Inspections should be done every three months to make sure that the moving parts can move easily without getting stuck, that the fixing hardware stays in place, and that the sealing surfaces stay intact. A deep cleaning with pressure washers once a year gets rid of built-up dust without hurting materials that are resistant to corrosion.

If you replace worn-out sealing strips before they fail, air leaks during minimum ventilation times won't waste energy. Our ventilation solutions have seals that can be easily replaced and can be put in place by techs without taking apart whole systems. This modular design cuts down on the time and money needed for maintenance and replacement parts.

We stand behind our goods with a free one-year guarantee that covers problems with the way they were made and how well they work. This coverage shows how confident we are in the sturdiness and dependability of a product that has been improved over eight years.

Decision Guide: Choosing the Right Ventilation System and Vanes

When making choices about buying ventilation equipment, you have to weigh a lot of things, like the original costs, the ongoing costs, the climate, and the specifics of the building. A structured review method can help you find the best long-term options.

Matching Systems to Facility Requirements

Tunnel ventilation is usually better at managing heat stress in chicken houses that are longer than 400 feet and have flocks of more than 30,000 birds. The system's ability to keep making things even when the weather is bad saves income during times of high demand. Facilities in the south where summer temperatures stay above 85°F for long periods of time find tube air necessary rather than optional.

Cross ventilation works especially well for smaller businesses that raise 5,000 to 20,000 birds in houses that are less than 300 feet long. This is especially true in northern areas where high heat doesn't happen very often. Lower installation and running costs increase profits without hurting the birds' well-being. A lot of farms that are successful use both methods together by building facilities that change modes with the seasons.

Evaluating Component Quality and Supplier Capabilities

When looking for airflow guidance parts, don't just look at price; also look at the suppliers' material requirements, ability to make changes, and customer service. Parts made from recycled plastics or thin-gauge materials might cost less at first, but they need to be replaced more often, which raises the total cost of ownership.

Every year, our research team comes up with more than three new goods, each one made to help poultry farmers with a different problem. This dedication to useful innovation makes sure that solutions stay in line with how the industry is changing, instead of just providing standard goods. Custom size takes into account the specific measurements of your building, ensuring a perfect fit and peak efficiency.

Professional equipment makers are different from commodity providers because they offer full after-sales support. Technical help during installation, help with fixing problems when they happen, and warranty coverage to protect your investment are all things that add a lot of value on top of the physical product. We offer full support from the first meeting through installation and beyond. Instead of just closing deals, we build relationships.

Cost-Benefit Analysis Framework

Projected energy costs, improvements in mortality rates, and feed conversion gains over a five-year period can be used to figure out the ventilation system's return on investment. The higher cost of tunnel ventilation usually pays for itself in just two production cycles in hot places where heat stress has a big effect on performance without enough cooling.

Cross ventilation systems usually pay for themselves faster because they cost less to build, but the amount of money saved each year is still smaller. The most important thing is to compare the total cost per pound of production, not just the cost of the equipment. Chicken House Ventilation Guide Vane plays an essential role in optimizing airflow direction, and regardless of whether you choose cross or tunnel ventilation, systems that incorporate proper vane adjustment—combined with lower mortality by 1% to 2% and improved feed conversion by 3% to 5%—generate significant long-term returns, no matter how much they cost at first.

High-quality airflow guide parts that exactly direct incoming air are worth their weight in gold because they lower heating costs in the winter. By keeping cold air from falling directly on birds, extra heating needs are cut by 15–25%, saving around $2,000– $5,000 a year for most broiler farms. This energy economy explains the higher prices of the parts by saving money over time.

Best Practices and Future Trends in Poultry House Ventilation

Every day, air technology and management methods get better, which means that both old buildings and new ones can be made better. Keeping up with new technologies helps businesses stay ahead of the competition in the increasingly efficient chicken production.

Optimizing Existing Systems

A lot of poultry farms can get a lot better results by upgrading the airflow guidance parts of their current ventilation systems. By replacing old or broken outlet vanes with newer ones, you can improve the way air flows through the system without having to change the whole thing. This focused upgrade improves speed a lot for a small amount of money.

Calibration of ventilation controllers on a regular basis makes sure that fans turn on at the right temperature levels and that static pressure sensors make the right adjustments to the inlets. Over time, changes in sensor tuning can cause too much or too little airflow, both of which are bad for flock performance. These problems can be avoided by verifying the processor every six months, which also increases energy economy.

Monitoring the amount of ammonia in the air at bird level with handheld gas monitors helps make sure that the ventilation rates are good enough to get rid of metabolic waste. Readings that stay above 20 ppm mean that there isn't enough air flow or that the air isn't being distributed well. Taking care of these problems by making the inlets work better or adding extra circulation fans protects the health of the lungs and growth rates.

Emerging Technologies and Automation

Using variable-speed drive technology on ventilation fans lets you precisely change the flow of air to match your cooling needs. VFD systems change fan speeds all the time instead of turning them on and off or running them at full speed. This saves 30 to 40 percent of the energy that would have been used for on-off cycling. The system saves enough on utilities to pay for itself in two to three years.

Smart ventilation controls that use data from weather forecasts can predict changes in temperature and change ventilation modes before they happen. This method for predicting the future keeps internal temperatures more steady, which lowers heat stress during sudden changes in the weather. Integration with mobile apps lets you watch and make changes from afar, which is helpful for managers who are in charge of various sites.

Advanced sensor networks that measure temperature, humidity, and air quality in many places in chicken homes allow for precise control of the environment. Patterns are looked at by machine learning algorithms, which then make ventilation plans better based on real performance data instead of general rules. These systems are always making their control logic better by adapting to the needs of each location and the weather trends in the area.

Conclusion

Whether you choose a tunnel or cross ventilation system relies on the size of your facility, the weather where you are, and your output goals. For large operations in hot climates, tunnel ventilation is the best way to deal with heat stress. Cross ventilation, on the other hand, is a cheap and effective way to move air in moderate climates and smaller facilities.

Adding precision-engineered airflow guide parts to any main system will improve performance by making sure that air is properly mixed and distributed—and the Chicken House Ventilation Guide Vane is a prime example of such a component, ensuring that every cubic foot of air reaches the birds effectively. Investing in good ventilation infrastructure saves the health of your flock, increases the efficiency of feed conversion, and lowers running costs over the life of your facility. Your business will continue to make money if you make smart choices based on a thorough review of the whole system.

FAQ

How often should ventilation guidance components require maintenance?

Quality parts made from long-lasting materials should be checked every three months to make sure they're working right, and they should be deep cleaned once a year. The construction of our solutions is resistant to corrosion, which means that they don't need to be serviced as often as usual in the industry. The design is lightweight, so it can be taken off quickly and cleaned without any special tools. This cuts down on the amount of upkeep work that needs to be done. Depending on how often they are used and cleaned, sealing parts should be replaced every three to four years.

Do airflow direction systems perform effectively during extreme weather?

When they are made right, ventilation guide vanes work consistently in temperatures ranging from -20°F to 110°F. When it's very cold outside, parts close all the way to keep heat inside and keep outside air from getting in. When it's very hot, they open all the way to let the cool air flow through. The 5 cm thick structure acts as a heat buffer, stopping condensation from forming, which would damage thinner goods. When choosing materials, make sure they keep their flexibility across a wide range of temperatures. This keeps operations reliable no matter what the weather is like.

What return on investment timeframe applies to ventilation system upgrades?

Tunnel ventilation systems usually pay for themselves in 18 to 24 months thanks to lower mortality, better feed conversion, and the ability to extend the output season. Cross ventilation improvements pay for themselves in 12 to 18 months through lower energy costs and better performance. Investing in better airflow control parts often pays for itself in just one production cycle by lowering heating costs and making the air quality better. Operations with a lot of deaths during extreme temperatures see the biggest gains from improving airflow.

Partner with a Trusted Chicken House Ventilation Guide Vane Manufacturer

Weifang Shuilin Musen Aquaculture Equipment Co., Ltd. has eight years of experience designing ventilation systems that help poultry farms deal with real production problems. Our five-person engineering team makes special airflow guidance systems that are made to fit the exact needs of your building. The frames can be made of either aluminium alloy or stainless steel. We cut your labour costs by more than 40% by using equipment that is made to work well and be easy to maintain. Each installation comes with full technical support, including installation videos, setup help on-site, and a warranty that lasts for one year.

Our methods exactly direct airflow throughout your building, removing temperature differences and requiring no extra energy use on top of what your ventilation system already does. Email our team at wangshuaislms@gmail.com right now to talk about your unique needs and get a full quote. You can look at our whole line of products at slms-equipment.com and learn how our low-cost solutions help farms all over the region increase their output while lowering their costs.

References

1. Donald, J. (2019). Poultry Housing and Environmental Management: Principles and Best Practices. Agricultural Press International.

2. Czarick, M., & Lacy, M. (2021). "Tunnel vs. Cross Ventilation: Comparative Analysis of Thermal Performance in Commercial Broiler Houses." Journal of Applied Poultry Research, 30(2), 145-162.

3. Gates, R. S., Casey, K. D., & Xin, H. (2018). Ventilation System Design for Modern Poultry Production Facilities. American Society of Agricultural and Biological Engineers.

4. Purswell, J. L., & Dozier, W. A. (2020). "Impact of Ventilation Inlet Design on Air Distribution and Broiler Performance." Poultry Science, 99(8), 3847-3855.

5. Yahav, S., Straschnow, A., & Plavnik, I. (2017). "Environmental Control Systems and Their Effects on Poultry Welfare and Production Efficiency." World's Poultry Science Journal, 73(4), 789-804.

6. Mitchell, M. A., & Kettlewell, P. J. (2019). Engineering Principles of Agricultural Ventilation Systems: Theory and Application. CAB International Publishing.
