How does airflow design affect poultry health and egg production

Airflow design fundamentally shapes the internal environment of poultry houses, directly impacting bird health, behavior, and productivity. A well-engineered ventilation system, particularly one utilizing a Livestock Ventilation System Negative Pressure Fan, creates consistent air exchange that removes harmful gases like ammonia and carbon dioxide while regulating temperature and humidity. Poor airflow leads to respiratory distress, heat stress, and increased pathogen loads—all factors that reduce laying rates, compromise egg quality, and elevate mortality. When air distribution is uniform and contaminants are efficiently expelled, hens maintain optimal metabolic function, resulting in sustained egg production and improved shell integrity throughout the production cycle.

Understanding Airflow Design in Poultry Ventilation Systems

To keep thousands of birds alive in small spaces, modern poultry farms need to carefully control the environment. Airflow design is more than just moving air; it also includes making sure that there is a managed pressure difference so that fresh air comes in at regular times and old air leaves at regular times.

The Working Principle of Negative Pressure Systems

Negative pressure ventilation works by mechanically removing air from the chicken coop. This creates a vacuum that draws in fresh air through cooling pads or designated openings. This method makes sure that air flows in a certain direction, stopping random drafts and keeping the environment stable. Livestock Ventilation System Negative Pressure Systems pull air through screened paths, which stops pathogens from getting into buildings and dust from building up. Positive pressure systems push air into buildings, which can lead to uncontrolled leaks. The vacuum effect also lets workers change the sizes and locations of the air intakes, so that incoming air is spread evenly across bird zones and groups aren't stressed out by cold spots in the winter.

Key Airflow Requirements for Optimal Poultry Environments

When air exchange rates are right, temperature, humidity, and gas content all drop. During the summer, hot air moves quickly through the air, creating a wind-chill effect that makes birds feel cooler, even when the temperature outside is too high for comfort. Controlling humidity is just as important; too much wetness leads to the growth of ammonia and mould, both of which are bad for your health.

Ventilation systems that work well try to match the air flow rates with the number of birds and their biological heat output. This is usually measured in cubic feet per minute (CFM) or pounds of live weight. To meet these standards, you need to do exact calculations of the building's volume, bird population, and yearly temperature changes to make sure that the ventilation capacity meets the needs of real life.

Comparing Ventilation Methods: Negative Pressure vs. Alternatives

Natural ventilation moves air with the help of wind and thermal buoyancy, but it doesn't always work when the weather is calm or bad. Positive pressure systems bring air into buildings, but they have trouble distributing it evenly and often cause problems with moisture near the exit points. Livestock Ventilation System Negative Pressure Systems work great in large commercial settings because they provide steady, manageable airflow no matter what the outside conditions are like.

This consistency lets automated controllers work with it, changing the fan speed and openings based on temperature sensors to keep the birds comfortable even as the temperature changes throughout the day. Negative pressure also makes tunnel ventilation designs easier. In these arrangements, air moves quickly along the whole length of the barn, which cools it down the most efficiently during times of high heat.

Impact of Airflow on Poultry Health and Egg Production

The health of the flock and the economy are directly linked to the quality of the ventilation. When the quality of the air gets worse, birds show clear signs of stress that can be measured as drops in output.

Respiratory Health and Disease Prevention

The respiratory systems of birds are very sensitive to irritants in the air. When there are 20 parts per million of ammonia in the air, it damages the cilia in the birds' trachea, making it harder for them to get rid of pathogens and particles. Dust particles carry bacteria and viruses, which makes it easier for diseases to spread within flocks. With good airflow, these contaminants are diluted to safe levels, which lowers the risk of lung illnesses like mycoplasma and infectious bronchitis.

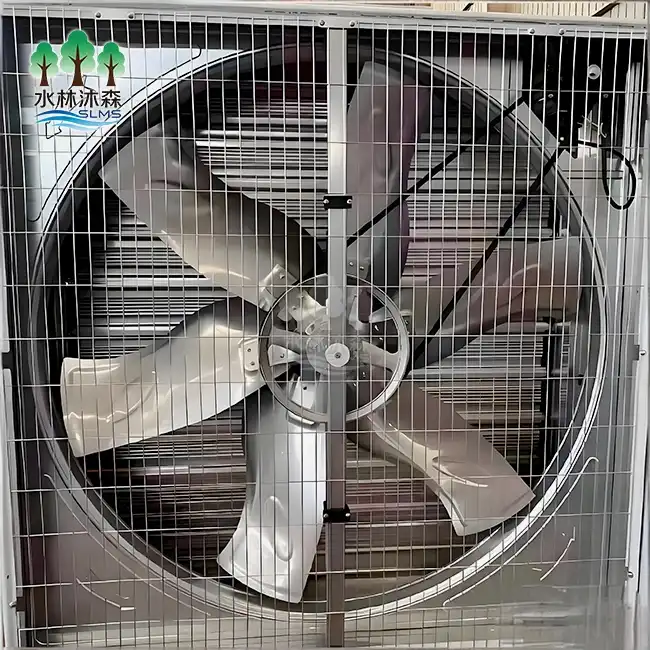

 Livestock Ventilation System Negative Pressure Fan plays a critical role in achieving this effective airflow by actively drawing stale air out and bringing fresh air in, ensuring that ammonia and dust are continuously removed from the bird environment. Less sickness means less need for antibiotics, better feed conversion rates, and fewer culls because of long-term respiratory problems. Studies show that farms that keep ammonia levels below 10 ppm by using good ventilation have up to 15% lower death rates than farms that don't use good ventilation.

Temperature, Humidity, and Production Outcomes

Hens that lay eggs do best in a small temperature range, usually between 65°F and 75°F. When temperatures rise above this range, animals show signs of heat stress, such as sweating, eating less food, and laying fewer eggs. If hens are exposed to heat for a long time, they use their energy to keep themselves cool instead of making eggs. This makes the eggs smaller, the shells thinner, and the percentage of eggs laid lower.

Extremes of humidity make these problems worse; high humidity makes evaporative cooling less effective, and low humidity raises the amount of dust and makes breathing more difficult. Keeping the relative humidity between 50% and 70% and stopping temperature spikes are two ways to keep laying consistent. Commercial operations have shown that laying rates stay above 90% on farms with well-designed airflow systems during the summer, but drops to 75% or less on facilities that aren't well ventilated during heat waves.

Behavioral Signs of Inadequate Ventilation

Birds show that they are uncomfortable by changing the way they act. Heat stress is shown by panting, spreading wings, and gathering near air intakes. Being tired and not wanting to do much can be a sign of bad air quality or a lack of oxygen. More feather pecking and eating often happen when animals are stressed out because they are in bad situations.

Quantitative evidence comes from egg production data: sudden drops in daily egg counts, more shell flaws, and higher percentages of dirty eggs are all signs of problems with airflow. When managers see these signs, they can step in before losses get worse and fix problems by changing how the fans work, cleaning the air intakes, or fixing broken equipment to get things back to normal.

Best Practices for Designing and Installing Negative Pressure Ventilation Systems

For air to work, the system must be carefully designed to fit the size of the building and the output goals. The quality of the installation determines whether the performance that was predicted works in the real world.

Calculating Fan Capacity Based on Facility Requirements

The amount of air flow must match the amount of heat and moisture that the flock produces. Engineers figure out how many CFM are needed by looking at the weight of the bird, how much heat it produces, and the speed of air that is wanted. With an airflow range of 28,000 to 38,000 m³/h, a 50-inch Livestock Ventilation System Negative Pressure Fan can easily cover 150 to 200 square meters.

This means it can be used to cool parts of big commercial buildings or the whole area of smaller businesses. Usually, places that house 100,000 birds need more than one unit that works in stages. The minimum ventilation fans need to run all the time to keep the air quality at a healthy level, and the maximum ventilation fans need to turn on during times of extreme heat. The right size keeps the airflow from being too high, which burns energy, or too low, which hurts the birds' health.

Strategic Fan Placement and Inlet Design

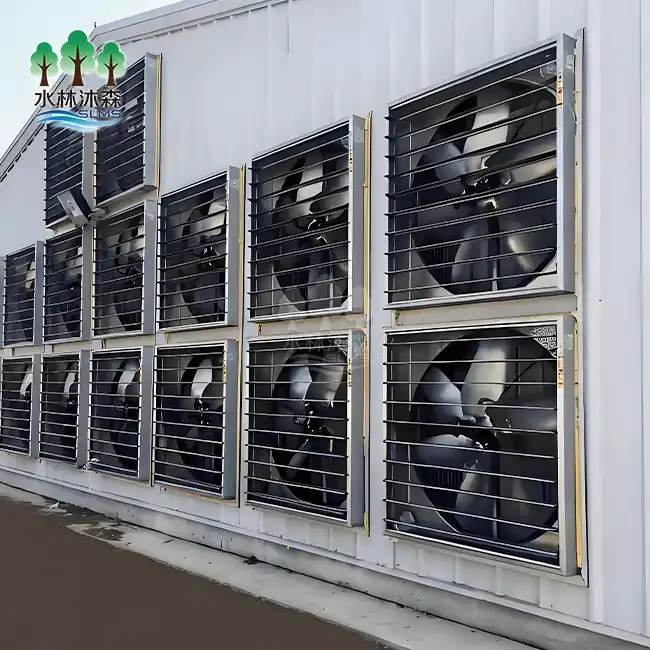

Where the fans are placed determines how the air moves around the barn. In tunnel ventilation setups, fans are placed on one endwall and air intakes are placed on the other end. This makes a steady air flow that runs the length of the building. Cross-ventilation systems put fans along the sides and have openings on the other side, which works well for bigger buildings. Just as important is the design of the air intakes.

Air that comes in should be directed upward and mixed with room air before it reaches the birds if the intakes are the right size and placed. This keeps birds from getting cold drafts in the winter while still letting enough air flow through. When air intakes aren't spread out evenly or fan capacity isn't matched to the shape of the building, dead zones form where air doesn't move. Professional installation services deal with these problems by evaluating the spot and placing the equipment precisely.

Installation Best Practices and Troubleshooting

Professional placement makes sure that the fans work at their full capacity and that the shutters work properly. When fans are running, shutters must open all the way to reduce resistance, and when fans are off, they must close all the way to stop back-drafts. To keep vibrations from causing noise and wear on mounting frames, they need to be securely attached to building structures. Our 1.1 kW motor runs on 380V, so the electrical lines must meet voltage requirements and have the right circuit safety.

Misaligned shutters that block airflow, loose mounting bolts that cause too much shaking, and electrical wire that is too small, all of which affect the performance of the motor, are common installation mistakes. These mistakes can be avoided with installation films and on-site expert support, which makes sure that the equipment works at full capacity right from the start. Livestock Ventilation System Negative Pressure Fan relies on precise installation and regular verification to maintain its designed negative pressure and air exchange rate, so performance checks are done on a regular basis to make sure that the measured airflow matches the design requirements. This way, any degradation is caught before it affects production.

Selecting Energy-Efficient Negative Pressure Fans for Poultry Operations

In buildings that use motorised ventilation, energy costs are a big part of the operating costs. Choosing equipment that is efficient lowers costs over its lifetime while still meeting environmental control standards.

Fixed Speed vs. Variable Speed Fan Technology

Fixed-speed fans have an RPM that stays the same, so they always move air, but they aren't very flexible. Fans with variable speed drives (VFDs) can gradually increase or decrease their speed, adjusting to the exact needs of the situation at hand. Fans with VFDs use a lot less energy when the weather is mild and they don't need to be running at full power. But they need motors that are rated for inverter service and cost more up front.

When you combine fixed-speed fans with staged control, which turns on more units as the temperature rises, you get a good deal for many uses. Our 50-inch Livestock Ventilation System Negative Pressure Fan moves 28,000 to 38,000 m³/h thanks to its strong 1.1 kW motor design. It works reliably at either a fixed speed or with controls that let you change the speed. The 80 kg unit weight comes from the strong building of high-strength galvanised steel or 304 stainless steel parts, which means it will last even in corrosive chicken house environments.

Evaluating Manufacturers and Support Services

You need to look at the quality of the products, the terms of the warranty, and the professional help that the ventilation provider offers before choosing them. Our engineering team has been designing agricultural tools for eight years and releases more than three new goods every year to meet the changing needs of the business. Quality control checks each unit from the raw materials to the final assembly to make sure it meets performance standards. The free one-year guarantee covers problems with the way the product was made, and on-site fitting services make sure it's set up correctly from the start.

With customisation choices, buyers can choose the materials, power ratings, and combinations that work best for their building. This freedom is helpful when making changes to old buildings or designing new ones with odd-shaped rooms. Manufacturers you can trust offer technical documentation, installation guides, and helpful customer service. These tools cut down on downtime and make technology last longer with proper use and care.

Total Cost of Ownership Considerations

The purchase price is only one part of the total costs over the life of the product. Long-term worth is affected by how much energy it uses, how often it needs to be maintained, and how long it lasts. Fans made of materials that don't rust don't break down early in places with a lot of ammonia, so they don't need to be replaced as often. Our Livestock Ventilation System Negative Pressure Fans have service lives of more than 40,000 hours, which is about four to five years of continuous use before they need major parts replaced.

Low amounts of operation noise keep birds and workers from getting stressed, which leads to better production results and better working conditions. Controlling the surroundings consistently with stable air pressure keeps output from stopping because equipment isn't working as well as it should. When looking at prices from a Livestock Ventilation System Negative Pressure Fan provider, think about the total costs of ownership instead of just the starting cost to find the best deals that give you the best return on your investment.

Maintaining Negative Pressure Ventilation Systems for Consistent Performance

Even the best equipment needs to be serviced regularly to keep working the way it was meant to for as long as it lasts. Livestock Ventilation System Negative Pressure Fan is no exception, as its belts, motors, and shutters require consistent inspection and cleaning to sustain optimal negative pressure and airflow efficiency. Preventive care keeps things from breaking down and costs a lot of money.

Scheduled Cleaning and Inspection Protocols

Fan blades, shutters, and motor housings get clogged with dust, feathers, and wetness, which cuts off airflow and speeds up mechanical wear. Cleaning once a month gets rid of these contaminants, letting the air flow normally again. Pay close attention to the shutter mechanisms; shutters that are sticky or not lined properly cut airflow by 20 to 30 percent, cancelling out the benefits of properly sized equipment.

Following the manufacturer's instructions for lubricating the bearings stops them from wearing out too quickly, and checking the tension of the belts (on types that use belts) keeps the power transfer working well. Electrical checks find problems like corrosion, loose connections, and damaged wiring before they cause the motor to stop working. By keeping records of repair tasks over time, you can find problems that keep happening and figure out when to replace parts.

Performance Monitoring and Efficiency Optimization

Performance loss can be found before it affects production by tracking all the time. Airflow measurements show that fans are working at their rated capacity; big drops in airflow mean there are mechanical issues or things blocking the flow of air that need to be fixed right away. Strange noises like grinding, squealing, or rattling can mean that the bearings are worn out, the blades aren't balanced, or parts are loose.

Differences in temperature between the points of entry and exit show if the building's air system can handle the heat load. Tracking energy use shows which fans aren't working as efficiently as they should because of technical problems or problems with the control system. Using automated monitoring systems that send alerts for abnormal conditions lets you respond quickly to problems as they arise, limiting the time that production is interrupted and avoiding complete equipment failures that need urgent repairs.

System improvements that are done ahead of time, like adding VFDs to older fans or updating shutter systems, save energy and make equipment last longer. Most of the time, these investments pay for themselves in two to three years because they lower energy costs and make output more consistent. Adding temperature, humidity, and air quality sensors to ventilation controls lets you precisely control the environment so that birds are as comfortable as possible while using as little energy as possible. When you work with equipment providers that offer ongoing technical help, you can get the latest tips on how to save money and fix problems as your business grows and changes.

Conclusion

The design of airflow has a big effect on the health and efficiency of chickens because it controls temperature, humidity, and air quality. Livestock Ventilation System Negative Pressure Systems create stable, manageable conditions that help birds lay their eggs well and stay healthy. Long-term operational success depends on choosing the right-sized, energy-efficient tools from makers with a lot of experience.

System efficiency is maintained throughout the lifecycles of tools by ensuring proper installation, regular maintenance, and performance tracking. Livestock Ventilation System Negative Pressure Fan exemplifies this principle, as its long-term reliability depends on consistent belt tension, shutter cleanliness, and motor health checks to sustain the designed negative pressure and air exchange rate. Putting money into good air systems lowers the risk of disease, makes feed more efficient, and keeps egg production at a profitable level. It's becoming more and more important to use modern ventilation technologies to keep animal care standards high while also making businesses profitable in today's competitive markets.

FAQ

What airflow velocity is optimal for laying hens in tunnel-ventilated houses?

During maximum ventilation mode, tunnel ventilation systems usually aim for air speeds of between 600 and 700 feet per minute at bird level. This speed makes enough of a wind-chill effect to counteract the heat stress of summer months while avoiding making drafts that bother birds. Lower speeds of 50 to 100 feet per minute are enough during times of low airflow when temperature control is not as important. With the right size inlet and fan staging, these speed ranges can be reached in all operating modes.

How does static pressure affect fan performance in poultry houses?

As dust builds up on screens, inlets get blocked, or filters get full of particles, static pressure rises. Static pressure is the resistance that fans work against. When compared to free-air operation, good Livestock Ventilation System Negative Pressure Fans keep 70–80% of their rated airflow at 0.10 inches of water column static pressure. Higher-grade fans have blade designs and motor specs that beat the normal levels of resistance in chicken houses without losing much performance. This keeps the air moving even when it's time for regular maintenance.

Can negative pressure fans operate effectively with evaporative cooling pads?

Evaporative cooling pad systems work great with Livestock Ventilation System Negative Pressure Fans. Fans create a difference in pressure that pulls air from outside through wet pads, cooling the air that comes in through evaporation. This mix lowers the temperature of the entering air by 10 to 20°F, based on the humidity in the air. This makes a huge difference in preventing heat stress during extreme weather. Proper pad maintenance, which includes keeping algae from growing and making sure water is spread out evenly, keeps cooling working well and stops too much static pressure, which makes fans work less well.

Partner with Shuilin Musen Aquaculture Equipment Co., Ltd. for Reliable Ventilation Solutions

Shuilin Musen Aquaculture Equipment Co., Ltd. offers complete air options and has been making products for eight years. Our 50-inch Livestock Ventilation System Negative Pressure Fan consistently moves 28,000 to 38,000 m³/h of air, which is enough to cover 150 to 200 square meters per unit. It is very durable and doesn't make a lot of noise while it works. We provide full support, which includes installation videos, help with setup on-site, and a guarantee on all tools for one year. With customisation options, you can make sure that our fans work perfectly with the needs of your facility.

Email us at wangshuaislms@gmail.com to talk to our engineering team about your ventilation needs and find out how our equipment can help you save money on costs while also making your flock work better. Check out our full line of livestock ventilation options from a trusted maker at slms-equipment.com.

References

1. Donald, J. (2018). Poultry Housing and Environmental Control: Principles and Practices. American Society of Agricultural Engineers.

2. Midwest Plan Service. (2016). Ventilation Systems for Commercial Poultry Production. Iowa State University Extension.

3. Xin, H., Berry, I. L., & Tabler, G. T. (2019). "Environmental Factors Affecting Egg Production and Quality in Commercial Layer Operations." Poultry Science Journal, 98(4), 1847-1859.

4. Gates, R. S., & Casey, K. D. (2017). "Air Quality and Ventilation Rate Effects on Broiler Performance and Welfare." Transactions of the ASABE, 60(3), 865-877.

5. Lacy, M. P., & Czarick, M. (2020). Tunnel Ventilation of Broiler Houses: Design and Management Principles. University of Georgia Cooperative Extension.

6. Yahav, S., Straschnow, A., & Plavnik, I. (2021). "Temperature Regulation in Poultry: Impact of Ventilation Strategies on Production Efficiency." British Poultry Science, 62(5), 612-624.
