How to install a drive motor for poultry shed equipment?

The most important thing for automating modern poultry processes is to install a Poultry Shed Equipment Drive Motor properly. These special motors power systems that keep birds healthy and increase production. They power things like food carts, systems that get rid of manure, and ventilation fans. When equipment is installed correctly, it lasts longer, doesn't break down as often, and works the same way even in tough settings. This guide takes you through the whole process, from getting ready to fixing problems. It's meant to help buying managers and farm engineers protect their investments by making smart decisions.

Understanding Poultry Shed Equipment Drive Motors

What Are Drive Motors and Their Functions?

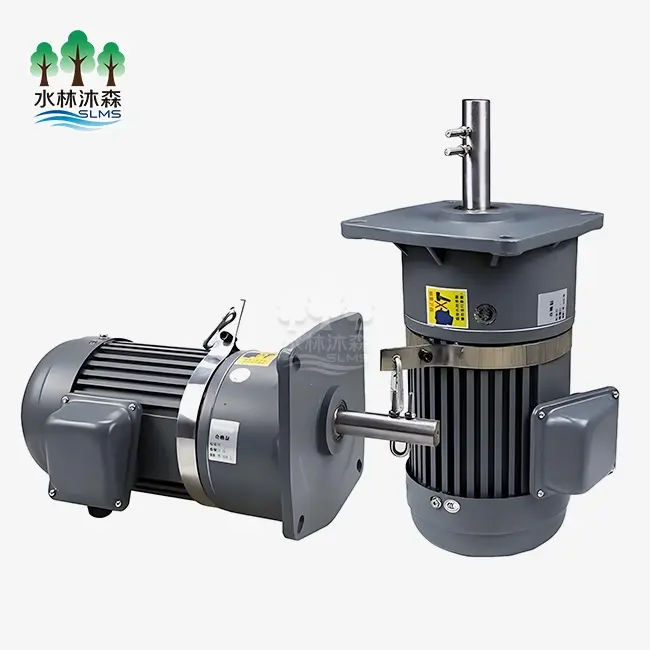

The mechanical heart of automated chicken tools is the Poultry Shed Equipment Drive Motor. Unlike regular industrial motors, these units have power modules, control systems, and safety features that are made to work in farming settings. They turn electrical energy into mechanical motion, which moves augers in feeding systems, rotates belts to get rid of manure, and runs winches to control ventilation. The accuracy and dependability of these motors decide whether your feeding plan keeps the best feed conversion ratios and whether your environmental controls react correctly to changes in temperature.

Common Motor Types and Their Applications

Direct drive motors don't have any moving parts in between, so they can connect directly to the load. This makes them perfect for feeding trolleys that don't have a lot of room or are hard to get to for repair. Belt drive systems let you move them in different places and can handle shock loads, which is useful for tasks like removing manure where sudden resistance can happen. Most modern chicken farms use electric motors with copper windings because they conduct electricity better and let heat escape faster than metal motors. We sell motors with power outputs ranging from 0.75KW to 3KW, which is enough for sites that house anywhere from 5,000 to over 100,000 birds.

Key Specifications That Matter

The load ability of a drive motor is based on its power rating. For example, a 1.5KW motor can usually handle normal feeding lines for up to 20,000 layers, while a 3KW unit can handle heavy-duty manure belt systems. Starting efficiency is based on torque traits, which are especially important when feed lines are fully loaded. Protection grades like IP55 or IP66 show that something is resistant to dust and water, which is very important in places where ammonia is present and things are cleaned often. The cases of our motors are made of cast iron, which is resistant to corrosion and keeps its structural integrity over years of constant use.

Step-by-Step Installation Guide for Poultry Shed Drive Motors

Pre-Installation Preparation and Safety Protocols

Before you start any installation work, turn off the main switch and use lockout-tagout steps to make sure no one accidentally turns the power back on. Get the tools you'll need, like socket wrenches, torque wrenches that are set to the manufacturer's specs, leveling instruments, and multimeters for checking the electricity. Look over the Poultry Shed Equipment Drive Motor technical information and make a note of the mounting measurements, the required shaft position, and the electrical connection diagrams.

Check the placement site to make sure the mounting surface is clean, level, and physically sound. An uneven mounting surface causes vibrations that wear out bearings faster and make noise during operation. Make sure that the temperature and humidity of the area are within the motor's working range. For our units, this means that they can handle high temperatures and wetness.

Removing Old Motors and Mounting New Units

Take the electrical wiring away from the old motor and name each wire with its terminal link so that you can find it again when you put it back together. Take off the mechanical couplings and write down the alignment method that was used, such as a chain drive, a belt and pulley system, or a straight shaft coupling. Take care to support the motor's weight while you remove it from its fixing bracket so that you don't damage any equipment that is linked.

Place the new motor on the mounting surface and use precision alignment tools to line up the shaft centers with the driven equipment. Misalignment of as little as 0.5 mm can cause the bearings to fail early. Secure the mounting bolts in a cross-pattern pattern, slowly tightening them until they reach the required torque value. This will make sure that the pressure is spread evenly across the mounting base.

Electrical Integration and Control System Connection

There are three parts to our motors: the power module, the control module, and the placement safety module. Connect the power source wires according to the voltage requirements. Our units can be set to any voltage to meet local needs, whether they are 110V, 220V, or 480V three-phase systems. The control module talks to your farm's management system and takes signs for orders to start and stop, change the speed, and get feedback from the limit switch. Install thermal overload safety based on the motor's amperage limit; this is usually set at 115% of the full-load current listed on the motor's nameplate.

Connect emergency stop circuits to make sure that the system can be turned off right away. This is especially important for feeding systems where equipment jams could cause motors to burn out. To avoid getting an electric shock, connect the motor frame to your building's earth ground system using wires of the right size.

Calibration, Testing, and Final Inspection

Turn on the motor without any force to make sure it's rotating in the right direction. In auger systems, if the spin is wrong, the feed will be pushed backwards instead of forwards. Check the no-load current draw against the manufacturer's specs to find any possible winding problems before you connect the load. Gradually turn on the driven equipment while keeping an eye on how well the motor is working as the load increases. You can use a handheld vibration detector or just put your hand on the motor case to check for unusual vibration.

Too much vibration means that the loads are not balanced or aligned correctly. Check that all the safety features work properly by trying the emergency stop mechanisms, overload reaction, and travel limit switches. Write down information about the installation, such as the motor's model number, the date it was installed, the initial working settings, and any changes from the normal way of doing things. This information is needed for warranty claims and planning upkeep.

Common Issues and Troubleshooting Tips for Drive Motors in Poultry Sheds

Addressing Vibration and Noise Problems

There are three main reasons why something vibrates too much: mechanical misalignment, spinning parts that aren't balanced, or fixing hardware that is too loose. To find the shaft runout, use a scale indicator. For motors in this power range, the total runout should not be more than 0.05 mm. Check the balance of the gear or coupler and replace any parts that look like they are worn out or damaged.

Tighten all of the fastening bolts to the correct strength, since thermal cycling can make screws loosen over time. Bearing wear is often indicated by strange noise, especially if the sound changes pitch when the machine starts up or stops. Bearings should be replaced at the manufacturer's recommended times. In chicken sheds where dust and moisture speed up wear, this is usually every 8,000 to 10,000 hours of use.

Managing Overheating and Power Inconsistencies

When a Poultry Shed Equipment Drive Motor gets too hot beyond its regular working temperature range, it means that there are either electrical or mechanical problems. Check the winding's resistance on all of its stages; a big difference shows that the winding might break. Make sure the supply voltage stays within ±10% of the nameplate value. Motors have to draw too much power to keep their output torque when the voltage is too low.

Make sure there is enough air flow around the motor case by keeping the clearances required for cooling airflow. During normal upkeep, clean the cooling fins and ventilation holes of any dust and debris that has built up. Power fluctuations, such as voltage changes or phase imbalance, cause torque pulsations that put stress on mechanical parts and lower efficiency. If supply quality problems keep happening, you should install power stabilization equipment.

Preventive Maintenance Practices

Most drive motor problems can be avoided before they affect production by setting up a structured repair routine. Every three months, check the electrical connections by retightening the leads and looking for signs of burning, like insulation that has turned a different color. Follow the manufacturer's instructions for lubricating the bearings. Our sealed bearing designs don't need much upkeep, but systems with grease fittings need to be relubricated every 2,000 hours of use.

Using infrared thermography to keep an eye on working temperatures can help you spot problems before they become too big to handle. Keep detailed maintenance logs that record all checks, repairs, and part replacements. This past information can help you find problems that keep happening and back up warranty claims when they're needed.

Comparing Types of Poultry Shed Drive Motors for Optimal Installation Choices

Installation Complexity and Technical Requirements

Direct drive motors make installation easier because they don't need to be aligned like belt or chain systems do. A rigid coupling links the motor shaft directly to the driven equipment. This makes it easier to set up because fewer precise changes are needed. This setup works well for feeding trolleys that need to be small and can't be easily accessed for upkeep.

Belt drive systems are more complicated because you have to tighten the belts and line up the pulleys, but they let you put the motor in different places to protect it from hard conditions. The motor is attached to a base that can be adjusted so that the tension can be changed as the belts stretch during break-in periods.

Energy Efficiency and Operating Cost Analysis

Long-term working costs are directly affected by how well motors work in buildings that have a lot of automatic systems. Premium efficiency motors turn a bigger chunk of the electricity that comes in into useful mechanical work. This means that less energy is lost as heat. Our copper Poultry Shed Equipment Drive Motor design is more efficient than options with aluminum winding.

This is especially important in continuous-duty uses like ventilation systems that run 24 hours a day. To find the yearly energy costs, multiply the motor's power number by its working hours and the local electricity rate. For example, a 2KW motor that runs 16 hours a day at $0.12 per kWh would cost about $1,400 a year just in electricity. Even a 5% increase in efficiency can save a lot of money in a building with dozens of motors.

Environmental Adaptability and Durability

The harsh conditions in poultry sheds, including ammonia, water, temperature changes, and rough dust, make equipment less durable. Motors with cast iron housings don't rust as easily as painted steel ones, so they can stay structurally sound even when they are exposed to chemicals all the time. Sealed bearing designs keep dust and washing processes from getting into the bearings, which extends their useful life in tough circumstances.

Our motors go through a lot of tests to make sure they can work at high temperatures, fight moisture, and keep from rusting. This makes sure they work reliably through many production processes. High-strength materials and protective finishes work together to make tools that can handle tough situations year after year.

Procurement and After-Sales Considerations to Support Installation Success

Selecting Reliable Manufacturers and Suppliers

Buying drive motors from well-known companies makes sure that you can get expert help, replacement parts, and a warranty that protects your investment. Check out possible sellers based on how much experience they have with farming equipment. sellers of general industrial motors may not understand the needs of poultry farms, such as the need for ammonia resistance and the ability to be cleaned.

Shuilin Musen Aquaculture Equipment Co., Ltd. has eight years of experience making tools for livestock and has a research and development team that creates answers for intense farming needs. Our complete quality control method checks every part, from choosing the raw materials to delivering the finished product. This makes sure that all units work the same way.

Warranty Coverage and Service Agreements

Knowing the terms of the protection before you buy it keeps you from having problems when you need help. Our motors come with a free one-year guarantee that covers problems with the way they were made and parts that break down under normal use. This warranty doesn't cover damage caused by bad installation, electrical surges, or mechanical abuse. Making sure that installation steps and working conditions are properly documented is important to keep the guarantee valid.

Service agreements include more than just a guarantee. They also include regular repair visits, priority access to parts, and technical support hotlines. Check if these kinds of deals are good for your business by looking at how important each system is. For example, service contracts for main feeding systems might be a good idea, but backup air fans might not need that much coverage.

Customization and Lead Time Planning

Standard motor designs work well for most uses, but special needs may mean that they need to be changed. We can change the voltage to meet local electricity standards, change the shape of the shafts to fit specific equipment, and add more safety features for very harsh settings. Early on in the buying process, let them know what customizations they need. Engineering changes can add time to lead times that go beyond normal product delivery.

When you buy in bulk, you save money and make sure you have replacement parts on hand. Facilities with multiple similar systems should keep extra motors on hand so they can be swapped out quickly when one breaks. Plan your purchases so that they work with your building or machine update plans. This will give you enough time to prepare for manufacturing, shipping, and installation of the Poultry Shed Equipment Drive Motor.

Conclusion

When installing a drive motor for tools in a chicken coop, it's important to pay close attention to safety rules, mechanical balance, and electrical connections. The process starts with careful planning, then moves on to organized mounting and integration, and ends with thorough testing to make sure everything works right. Knowing about common problems like shaking, overheating, and electricity problems lets you fix them quickly, which keeps production running as smoothly as possible.

Long-term performance is best achieved by choosing the right motor type based on your application needs, operating conditions, and working goals. Poultry Shed Equipment Drive Motor selection is a critical part of this choice, as it must match the specific torque, speed, and environmental demands of feeder lines, augers, or ventilation components. Working with skilled makers who offer expert support, warranty coverage, and the ability to make changes saves your investment and helps it keep running.

FAQ

How long does drive motor installation typically require?

Professional installers usually need three to six hours to finish installing a drive motor in a chicken shed. In this amount of time, the old motor will be taken off, the new one will be mounted with exact alignment, electrical connections will be made, and the machine will be tested to make sure it works. This deadline could be pushed back for more complex systems with built-in control interfaces or installation needs that are unique. Installing something takes a lot less time if you have all the tools, bolts, and paperwork you need ready before you start.

Can existing systems upgrade to more efficient motors without extensive modifications?

Most systems for feeding, cooling, and removal of manure can easily be changed to suit larger motors. Key factors that affect compatibility are the patterns of the mounting holes, the width and length of the shaft, and how well the power output matches the load needs. Our expert team looks at the specs of your current equipment and suggests new motors that will work with your current equipment and be more efficient. Most of the time, switching to motors with higher efficiency pays for itself in lower power costs within two to three years.

What safety certifications should drive motors carry?

For chicken uses, drive motors should meet the electrical safety standards in your area. For example, in North America, they should have UL or CSA certifications. Protection grades like IP55 or IP66 show that a product has been tried to be resistant to dust and water getting in. This is important for equipment that needs to be cleaned. Our motors are safe to use in farming settings because they meet all safety standards and are tested for overload protection, thermal management, and emergency stop functions.

Partner with Shuilin Musen Aquaculture Equipment Co., Ltd. for Reliable Drive Motor Solutions

The Shuilin Musen Aquaculture Equipment Co., Ltd. is ready to help your chicken business with high-performance drive motors that were made for farming uses. Our goods have a steady power output between 0.75KW and 3KW, smart safety features like overload protections and emergency stops, and they last a very long time in places with a lot of moisture and high temperatures. Each motor goes through strict quality checks. They are made of high-strength coated steel or 304 stainless steel, which doesn't rust and lasts for years.

We offer full technical support, including installation guides, on-site installation services, and quick help after the sale, all backed by a free guarantee for one year. As a well-known company that makes Poultry Shed Equipment Drive Motors, we can tailor our services to your exact operating needs, voltage standards, and equipment designs. You can email us at wangshuaislms@gmail.com or visit slms-equipment.com to talk about how our drive motors can help automate your facility, cut labor costs by more than 40%, and make your whole business more productive.
